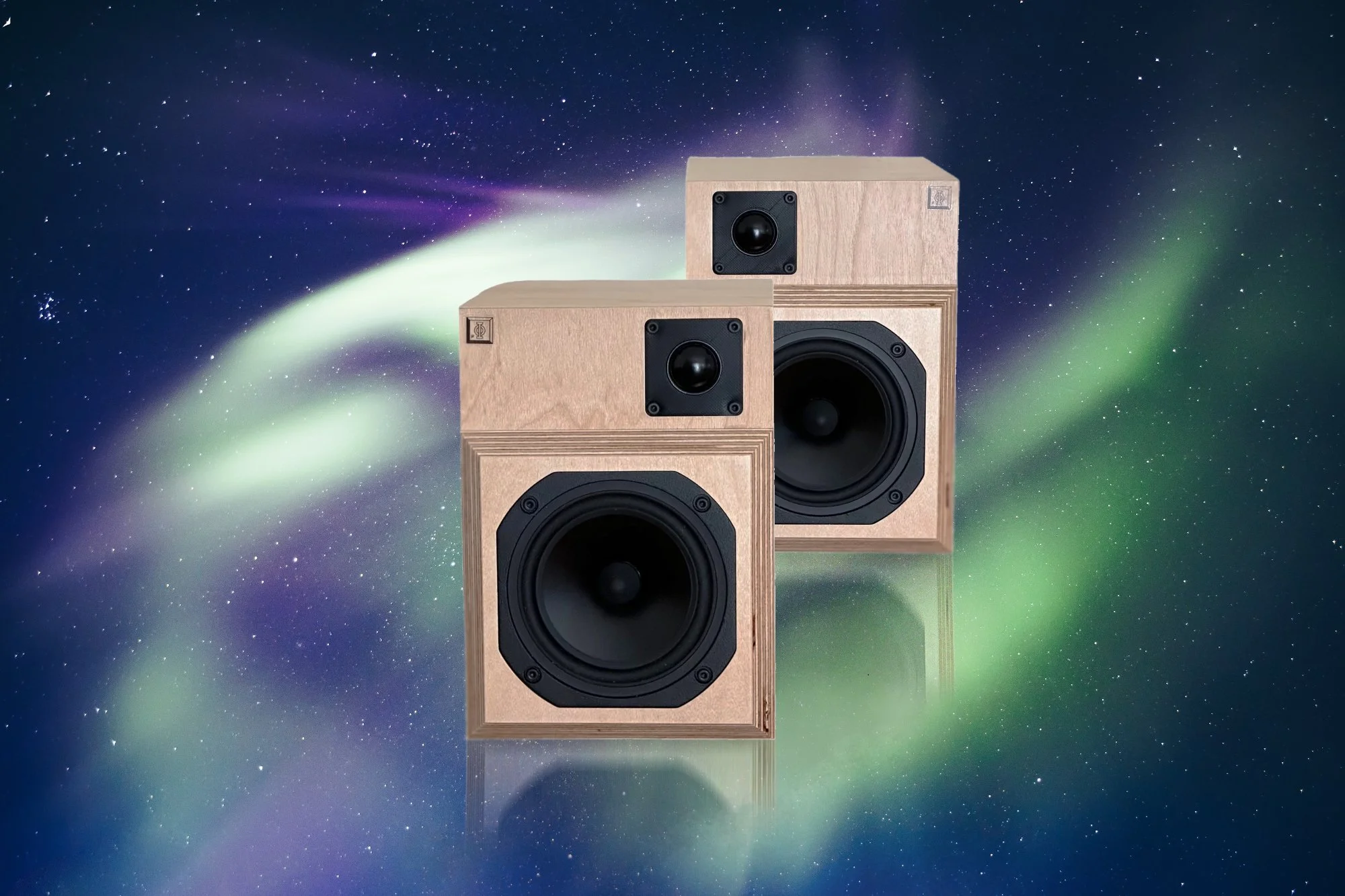

Microphase Audio Design SAT MK3 speakers (pair)
Tentative specifications
3-way miniature monitor, with bi-wiring and time aligned tweeter in a marine grade birch plywood cabinet with a clear polyurethane finish.
Tentative specifications
3-way miniature monitor, with bi-wiring and time aligned tweeter in a marine grade birch plywood cabinet with a clear polyurethane finish.
More information
The main full range driver - 13cm - has a paper membrane and phase plug specially designed for us by AUDAX in France.
The back driver is a 17cm also from Audax with a paper cone specially assembled for MAD.
The tweeter is also from AUDAX, as in our SAT MK1
Technical Specifications
Dimensions : 180x250x250mm
Frequency response: 55Hz - 30KHz +/- 6 dB
Efficiency: 90dB/1W/1m
Phase: 5/- 30 degrees from 20Hz to 40KHz
Impedance: Nominal 4 ohms
Crossover frequencies: 150Hz/12dB/oct, 4KHz/ 6dB/oct, Linkwitz-Riley phase alignment,
Power handling: 100W
