Newontech DAC 08 dac
The NewOntech DAC08 is a 16/20/24/32-bit at 32kHz to 192kHz digital to analogue converter. Incorporating an enhanced version of the NewOntech designed circuit,
The DAC08 offers the highest possible resolution over all inputs including fully asynchronous USB. Developed to be simple to set up and use, the NewOntech DAC08 is designed to optimize performance from any two channel PCM digital audio source.
With the PC now widely accepted as a credible medium for storing and streaming music, the use of high-quality lossless files such as WAV, FLAC and ALAC offer performance through the DAC08 equal to and in some cases better than Red Book CD. Great care has been taken to remove noise generated by the PC and other input sources. (During development this was identified as a major drawback with many DAC’s on the market today).
The DAC08 is housed in a custom aluminum case and using a Burr-Brown
DAC IC’s, a custom designed analogue filter and one asynchronous USB, two Co-axial inputs, one BNC & tree Toslink SPDIF inputs.
The DAC08 has been designed and engineered to integrate perfectly into any system and achieve the highest performance in its class. We hope you enjoy this NewOntech product for many years to come.
The NewOntech DAC08 is a 16/20/24/32-bit at 32kHz to 192kHz digital to analogue converter. Incorporating an enhanced version of the NewOntech designed circuit,
The DAC08 offers the highest possible resolution over all inputs including fully asynchronous USB. Developed to be simple to set up and use, the NewOntech DAC08 is designed to optimize performance from any two channel PCM digital audio source.
With the PC now widely accepted as a credible medium for storing and streaming music, the use of high-quality lossless files such as WAV, FLAC and ALAC offer performance through the DAC08 equal to and in some cases better than Red Book CD. Great care has been taken to remove noise generated by the PC and other input sources. (During development this was identified as a major drawback with many DAC’s on the market today).
The DAC08 is housed in a custom aluminum case and using a Burr-Brown
DAC IC’s, a custom designed analogue filter and one asynchronous USB, two Co-axial inputs, one BNC & tree Toslink SPDIF inputs.
The DAC08 has been designed and engineered to integrate perfectly into any system and achieve the highest performance in its class. We hope you enjoy this NewOntech product for many years to come.
Technology
The optical and coaxial input stage comprises a Crystal digital receiver. The receiver and PLL have their own dedicated power supplies. The DAC stages comprises a Burr Brown DAC, that are driven via a buffer stage, which ensures the integrity of the data being fed to the DAC IC’s.
The USB input stage is comprised of a bit perfect Amanero USB Audio 2.0 with asynchronous clocking. The USB input feeds the DAC through I2S interface, which ensures low jitter and perfect timing. The output amplifier employs a discrete differential, multiple feedback filter and output amplifier, with a high cut-off frequency for use with higher sample rates. We decided not to use a sample rate converter and process the data at the incoming sample rate which keeps the signal processing to a minimum. Jitter was minimized by synchronously clocking the digital data with our receiver PLL (removing any jitter from the input signal).
All the capacitors associated with the analogue signal path are audio grade bypassed with MMK polyester capacitors. The power supply utilizes a EI core transformer, fast rectifier diodes and again audio grade capacitors. Special attention being paid to the inter IC control signals ensures the control data noise is kept to a minimum.
Power on/off. When the power button is pressed the power led illuminates.
A rotary switch selects between the 8 available digital inputs.
Technical Specifications:

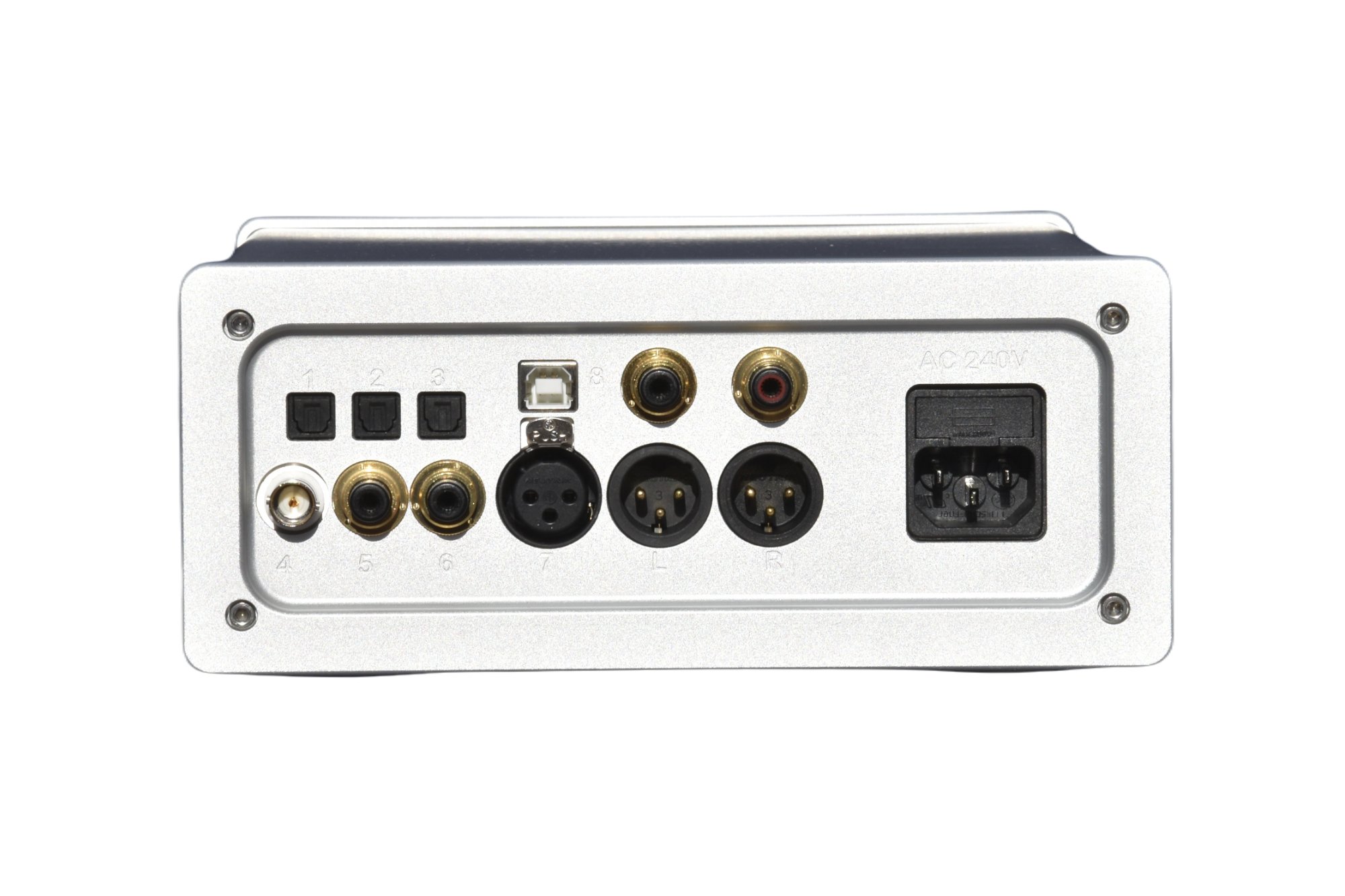

INPUT
Digital input: 2 X gold-plated RCA 75 ohm
Digital input: 3 x TOSKINK/SPDIF
Digital input: 1 x XLR
Digital input: 1 x USB
OUTPUT
Line output signal: 1.0V RMS
RCA and Balanced XLR
Output impedance 75 ohm
Specifications
MEASUREMENTS
Depth: 29 cm / Width: 24 cm / Height: 9 cm
Weight: 4 kg
POWER
Power requirements: 220-240 VAC
Power consumption: < 10 watts
Main AC Power switch on front panel
Distortion: THD+N <0.003%
Channel separation: >110dB
Level linearity error: +- 0.05dB
Sample rates: 32 KHz – 200 KHz
Dynamic Range: >120 dB
